STANDARD FEATURES

  • Robust basement structure in steel powder painted with bright and smooth finishing
  • Bow structure in special aluminum alloy hardened
  • Patented Hydraulic system for a fine regulation of bow feed and cutting pressure
  • Speed variator Kw 2,2; 20÷100 m/1’
  • Electrical cabinet easy to move integrated with front display for: rapid setting of frame position, cutting speed regulation, piece counter
  • Miter cutting -45°/+60°; bow rotation throught conical bearings indipendent from the plans for piece support
  • Wide Plans for piece support for a comfortable and practical cutting area
  • Complete coolant equipment of 50 lt. tank with electro-pump 3ph. 0,1Kw inside the basement
  • Measuring device L=500 mm with height regulation
  • Large chips container for easy cleaning
  • Bimetal blade M42 mm 3025x27x0,9, cardboard box + pallet, service wrenches, instruction manual and spare parts list

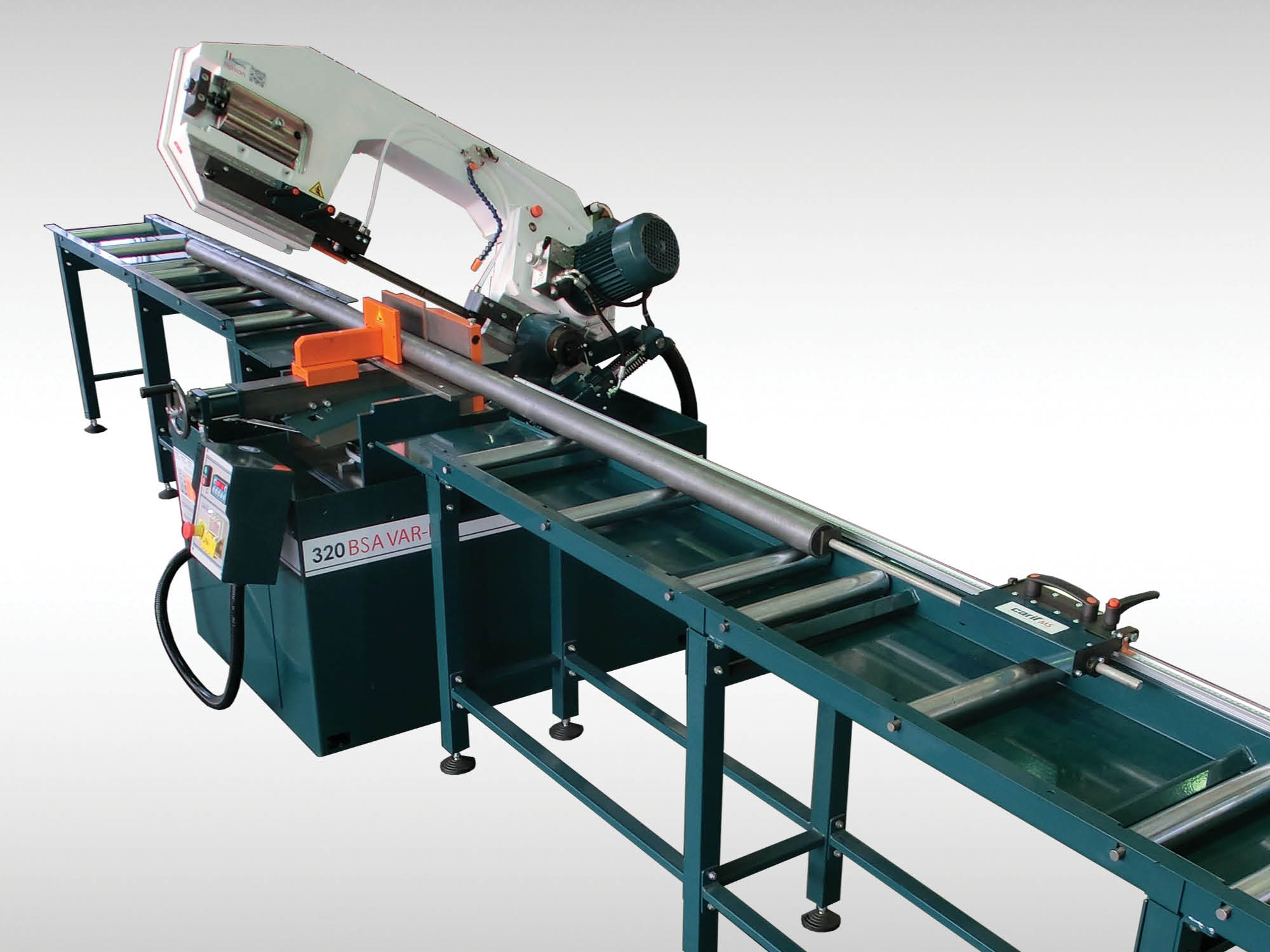

The 320 BSA VAR-E is the most appropriate machine when there are output roller tables because frame height is controlled by the front console

CUTTING CAPACITY

carif-descrizione-1_320_bsa_var-e

TECHNICAL FEATURES

320-BSA-VAR-E_caRATTERISCTICHE-TECNICHE

12 months guarantee on mechanical spare parts

Instruction manual and spare parts list

Free telephone support

WHY TO CHOOSE AN HYDRAULIC BANDSAW

All CARIF models 260/320/450 are completely Hydraulic:

closure of the vice, bow feed and pressure. The Carif hydraulic patented system has been designed with 2 commands: BOW FEED and CUTTING PRESSURE.
Thanks to this system the blade regularly descends, with a constant auto-regulation for every material type, section and thickness.

  • Increased productivity: No operator during cutting cycle, Ø stops.
  • Always straight cut: Auto-regulation of blade-stress based on material hardness and section.
  • Longer blade life: Slows down the bow descent without straining the blade when worn out.
  • Easy to use: Practical, simple and ergonomic operations.
  • Fast cutting operations: Fully hydraulic cycle. More efficiency.

Working light (for 320 & 450 series)

Air/Oil Lubrication System

Additional double vice

Laser-line

Hydraulic vertical clamping

Flushing hose

Thickness for cutting at 90°

Blade rotation sensor

Digital angle display (for 260/320 BSA VAR-E)

Roller stand / material support

CARIF ROLLER UNITS A-W 400

CARIF ROLLER UNITS 320 BSA

CARIF ROLLER UNITS B-W 400

CARIF ROLLER UNITS C-W 400

MS, Measuring System

Measuring device for measuring millimeter> 500mm

DMS, Digital Measuring System
