New Carif 450 BSA VAR-E

Completely Hydraulic Bandsaw with Bow Feed, Cutting Pressure & Vise

Extremely robust bandsaw with a modern design, equipped with an electronic speed variator 4 KW and ergonomic control board for a rapid set of the cutting point.

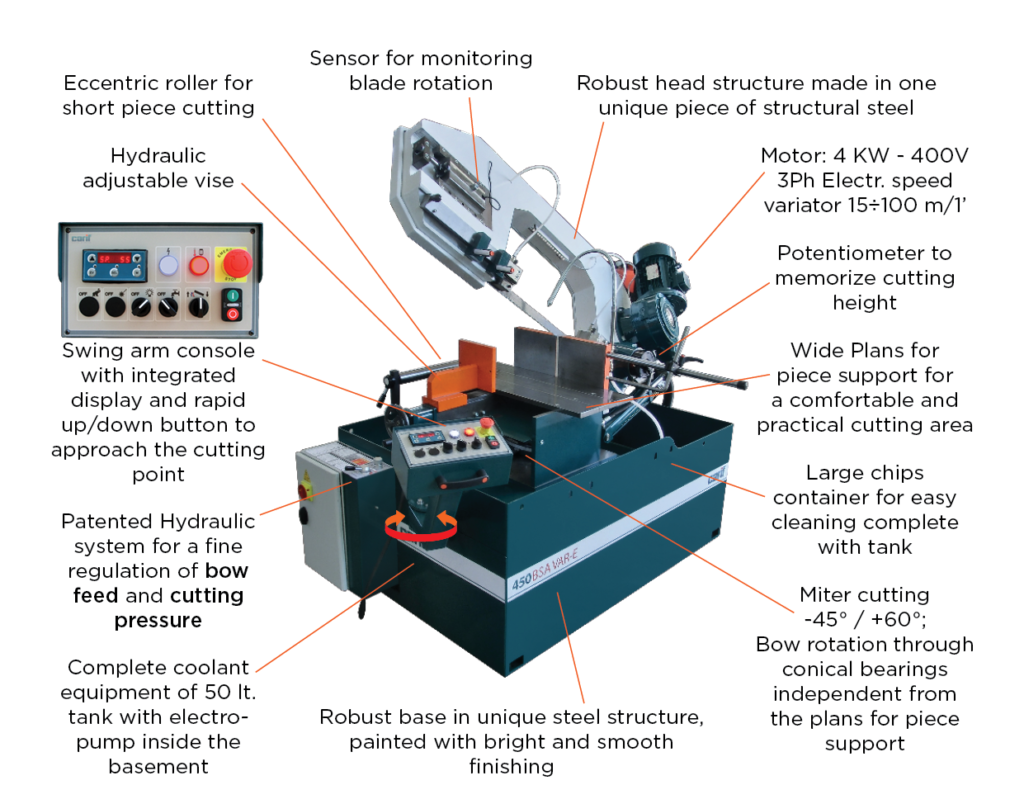

brochure-450-bsa-var-e-2018_en_news-img-02

Standard Features

  • Robust base structure (5mm) in steel powder painted with bright and smooth finishing.
  • Robust head structure made in one unique piece of structural steel.
  • Patented Hydraulic system for a fine regulation of bow feed and cutting pressure for any kind of material.
  • Electronic speed variator Kw 4; speed range 15÷100 m/1’.
  • Miter cutting -45°/+60°; bow rotation through conical bearings independent from the plans for
    piece support.
  • Swing Arm Console with Integrated Panel to control Blade Speed, Cutting Height & Piece Counter.
  • Eccentric roller for short piece cutting.
  • Wide Plans for piece support for a comfortable and practical cutting area.
  • Complete coolant equipment of 50 lt. tank with electro-pump 3ph. inside the basement.
  • Sensor for monitoring blade rotation.
  • Measuring device L=500 mm with height regulation.
  • Large chips container for easy cleaning.
  • Bimetal blade M42 mm 3660x34x1,1, cardboard box + pallet, service wrenches, instruction manual
    and spare parts list.

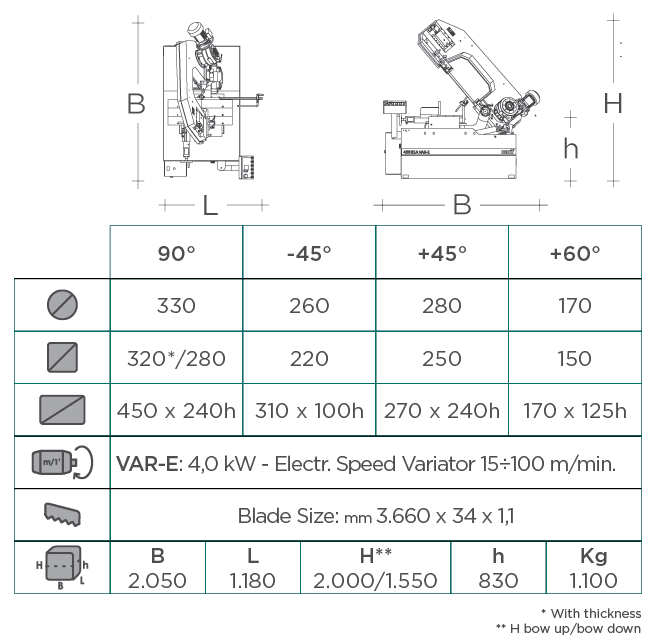

Technical Features

brochure-450-bsa-var-e-2018_en_news-img-01
